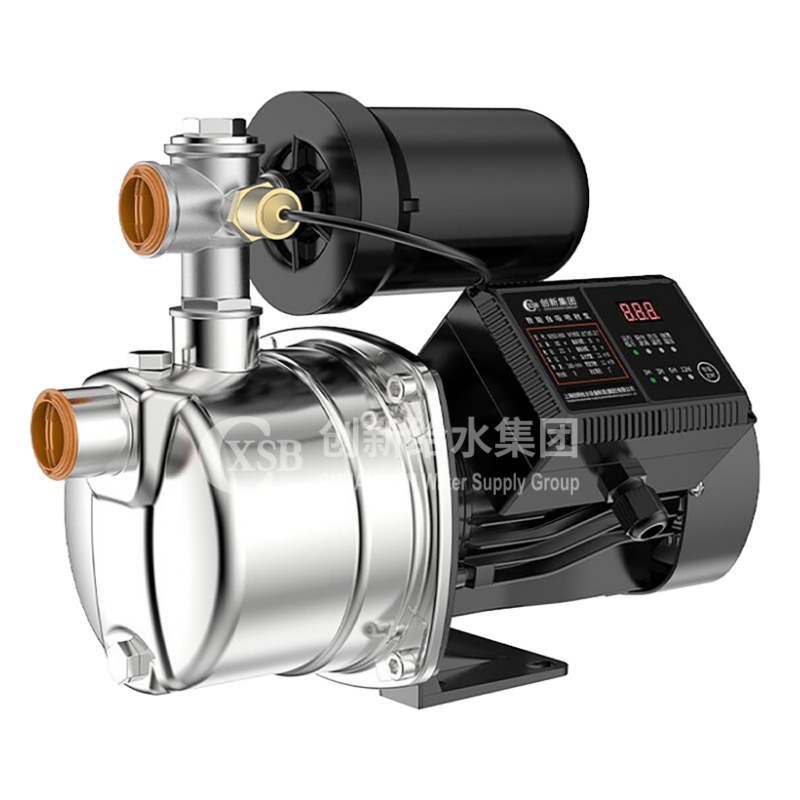

CXEK Type Stainless Steel Self-priming Jet Pump

Model:CXEK
Flow rate Q:1.5³/h
Lift H:20~50M
Single motor power of the moto:0.75~1.8kW
Caliber:DN25~DN40(mm)
Conveyed medium:Non - corrosive clean water
Advantages:Lightweight structure and good self - priming perf
Contact Us
+86 021 5643 0446
Detail
Overview
The CXEK Type Stainless Steel Self-priming Jet Pump is an ideal new type of household automatic booster pump. It is widely used in household water supply, underground well water pumping, tap water pressure boosting, garden irrigation, water supply for vegetable greenhouses, industrial and mining enterprises, aquaculture, and other fields.
Features
Intelligent Control: Equipped with an intelligent digital display system, it can intuitively show information such as water pressure and operating status. It supports automatic start-stop and intelligent pressure regulation, making the water usage experience more efficient and convenient. Mute Design: Adopting a low-noise structure, the noise during operation is as low as about 40-45 decibels, avoiding interference with daily life. Durable Material: The pump body is made of stainless steel, which has both rust-proof and anti-corrosion properties, extending the service life and ensuring water quality safety. Efficient Pressure Boosting: The power is adapted to the needs of multiple scenarios, and it can meet the pressure boosting needs for the entire household's water use (such as showering, laundry, and kitchen water use), improving the comfort of water use. Safety Protection: It has multiple safety functions such as water shortage protection, anti-freezing, and anti-leakage, which reduce the risk of equipment failure and ensure long-term stable operation.
Parameters
Model

Flow Rate(m³/h)

Head(m)Voltage(V)Power(kW)Rotational Speed(r/min)Diameter(mm)
CXEK100-0.751.5202200.75286025
CXEK100-1.11.5252201.1286032
CXEK100-1.1D1.5302201.1286032
CXEK100-1.51.5402201.5286050
CXEK100-1.81.5502201.8286040

Note: The relevant data is for reference only. For updated product parameters,please contact our customer service.
