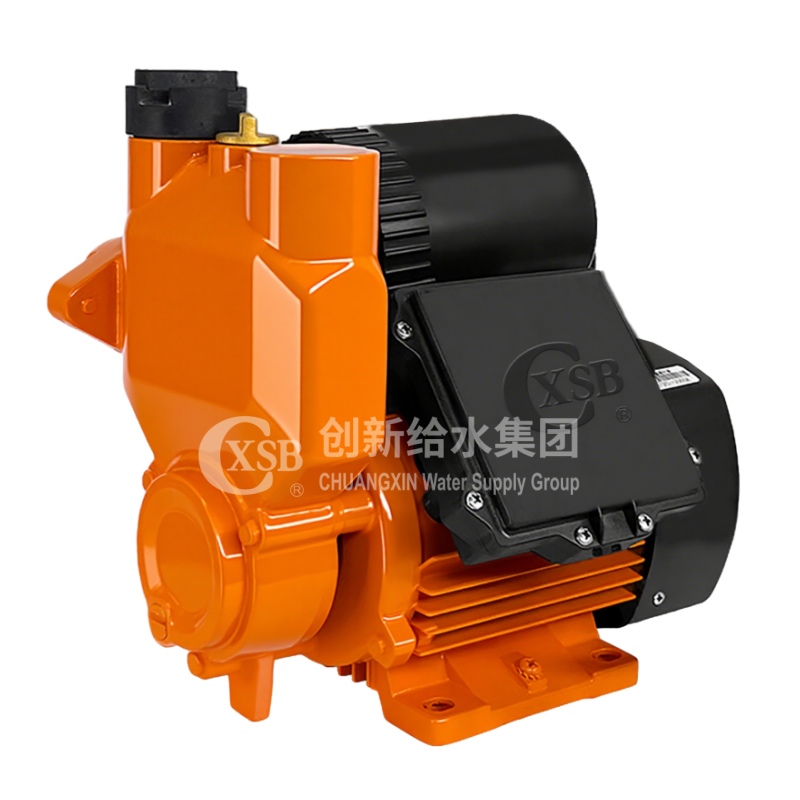

CXAK Self - priming Clear Water Pump
Model：CXAK
Flow rate Q：1~2m³/h
Lift H：12~30m
Single motor power of the moto：0.25~1.1kW
Protection class：IPX5
Conveyed medium：Clear water or liquids with physical and chemical
Operating temperature：0~+100℃
+86 021 5643 0446
Detail
The CXAK Type Self-Priming Clean Water Pump is a type of pump that can automatically draw water from water sources lower than the pump's horizontal level, and it can complete the self-priming process without relying on external power. It usually features a compact structure and easy operation. After the initial liquid filling, it can realize the self-priming function through the recirculation of the liquid inside the pump body. It is widely used in fields such as household water supply and agricultural irrigation.
Self-Priming Capacity: It can quickly draw water from water sources without the need for additional water-absorbing devices, making it suitable for daily water needs in scenarios such as households and agriculture.
Easy Operation: No manual air release or priming water addition is required, and the startup process is simple and fast. Some models are also equipped with automatic start-stop devices for convenient use.
Compact Structure: With a relatively compact design, it is easy to install and maintain. Additionally, it has a small size and light weight, facilitating transportation.
Stable Operation: It produces low noise and little vibration during operation and can work continuously for a long time. Some water pumps are also equipped with multiple safety protection systems, such as leakage protection, overheat protection, and anti-idling & anti-dry-heating protection, to ensure safe use.
| Model | Power（kW） | Head（m） | Flow Rate（m³/h） | Pressure（bar） | Weight（Kg） |
| CXAK200 | 0.25 | 12 | 1 | <1.5 | 7.7 |
| CXAK300 | 0.25 | 13.5 | 1 | <1.5 | 7.8 |
| CXAK400 | 0.33 | 17 | 1 | <2.0 | 8 |
| CXAK600 | 0.55 | 18 | 1.5 | <2.5 | 9.5 |
| CXAK800 | 0.75 | 27 | 1.5 | <3.0 | 10.8 |
| CXAK1100 | 1.1 | 30 | 2 | <3.5 | 13 |
Note: The relevant data is for reference only. For updated product parameters,please contact our customer service.
