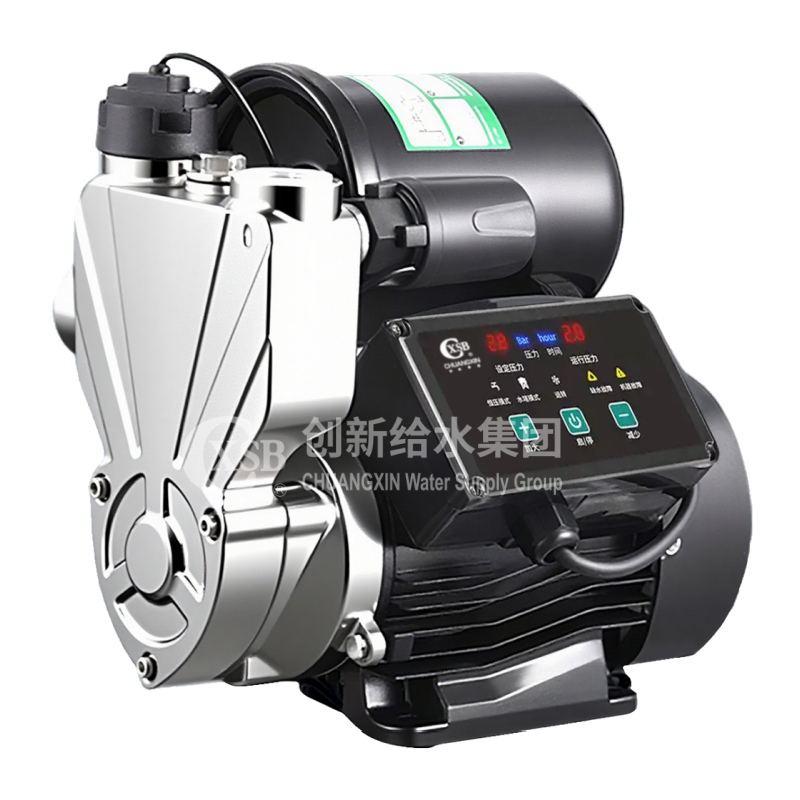

CXCK Type Household Whole-House Digital Display Self-Priming Booster Pump
Model：CXCK
Flow rate Q：2~4m³/h
Lift H：16~38m
Single motor power of the moto：0.25~0.75kW
Conveyed medium：Tap water and other non-corrosive liquids in terms
Operating temperature：0~+90℃
+86 021 5643 0446
Detail
The CXCK Type Household Whole-House Digital Display Self-Priming Booster Pump is specially designed to solve the problem of insufficient household water pressure. It integrates self-priming and pressure boosting functions in one. Adopting an advanced intelligent control system, it can automatically sense changes in water pressure in the pipeline: when the water pressure is lower than the set value, it starts quickly to boost the pressure, and stops automatically after reaching the set pressure. This pump is equipped with a digital display panel, which can show the current water pressure value in real time, allowing users to intuitively understand the water pressure status.
Intelligent Digital Display: The digital display panel clearly shows the current water pressure. Users can accurately adjust the pressure setting value according to actual needs. The operation is simple and intuitive, with no need for complex debugging.
Efficient Self-Priming: It has strong self-priming capability. For the first use, you only need to fill the pump cavity with water; subsequent water absorption can be completed automatically. It can quickly pump water from water sources such as wells and water tanks that are lower than the pump body.
Automatic Start-Stop: Equipped with a built-in pressure sensing device, it monitors the pipeline water pressure in real time. When water is used and the water pressure drops, it automatically starts to boost the pressure; when water is not used and the water pressure rises, it automatically stops. This reduces frequent manual operations, saves electricity, and extends the service life of the pump.
Quiet Operation: Adopting an optimized motor design and shock absorption and noise reduction technology, the noise during operation is extremely low, which will not interfere with the normal family life—even when using water at night, it remains quiet without disturbance.
Multiple Protections: It is equipped with overheat protection to prevent the motor from being damaged due to overheating during long-term operation; it also has a water shortage protection function. When the water source is dry or the water supply is insufficient, it automatically shuts down to avoid damage to the pump body caused by idling, ensuring safe and reliable use.
Easy Installation: With a compact structure and small size, it requires little installation space. The inlet and outlet pipe interfaces are designed with universal standards, and the supporting installation accessories are complete. Ordinary users can complete the installation by referring to the instruction manual.
| Model | Power（kW） | Head（m） | Flow Rate（m³/h） | Corresponding Gear |
| CXCK2 - 2 | 0.25 | 16 | 2 | F1 |
| CXCK2 - 3 | 0.37 | 24 | 2 | F2 |
| CXCK2 - 4 | 0.55 | 30 | 2 | F4 |
| CXCK2 - 5 | 0.55 | 38 | 2 | F5 |
| CXCK4 - 2 | 0.37 | 13 | 4 | F1 |
| CXCK4 - 3 | 0.55 | 19.5 | 4 | F2 |
| CXCK4 - 4 | 0.75 | 28 | 4 | F4 |
| CXCK4 - 5 | 0.75 | 35 | 4 | F5 |
Note: The relevant data is for reference only. For updated product parameters,please contact our customer service.
