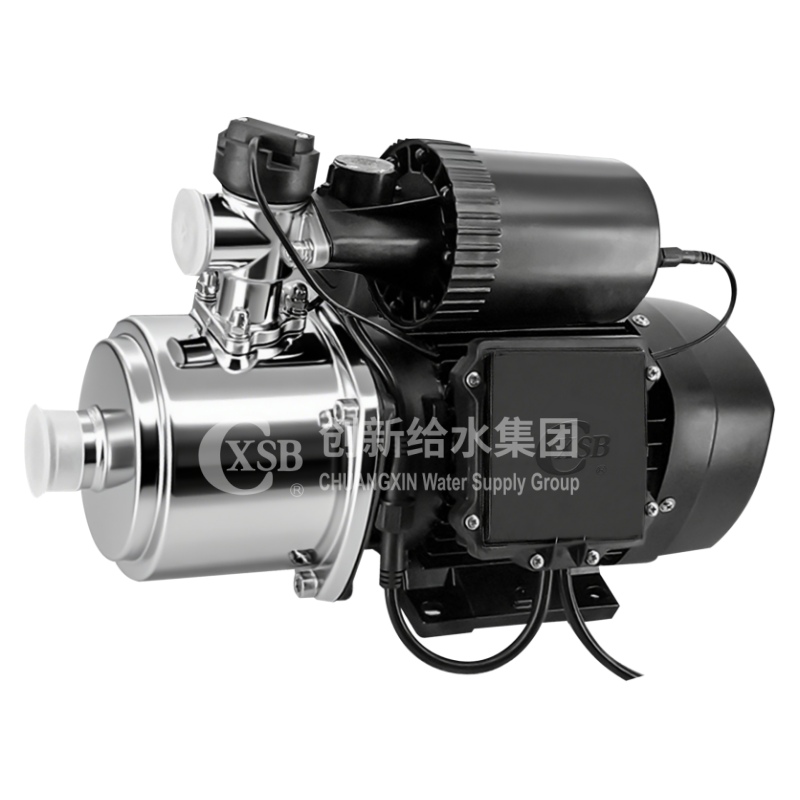

CXWK Type Stainless Steel Horizontal Single-stage Pump
Model：CXCK
Flow rate Q：2~4m³/h
Lift H：16~38m
Single motor power of the moto：0.25~0.75kW
Conveyed medium：Tap water and other liquids that are non - corrosi
+86 021 5643 0446
Detail
The CXWK Type Stainless Steel Horizontal Single-Stage Pump is a household/small commercial booster pump specially designed to solve the problem of insufficient water pressure. Its core features are integration, intelligence, and durability. This series of products is highly integrated, which greatly simplifies the installation process and eliminates the need for additional assembly of complex accessories.
In terms of operation control, it adopts intelligent pressure sensing technology, which can monitor the pipeline pressure in real time and realize automatic operation of "starting when water is used and stopping when water is cut off". It also supports custom adjustment of pressure parameters, allowing flexible setting of pressure thresholds according to different water needs (such as showering, irrigation, and car washing), balancing practicality and energy efficiency.
Durable Material, Safe and Hygienic: The wetted parts are made of 304/316 stainless steel, which is rust-proof and corrosion-resistant. This not only extends the service life of the pump body (preventing oxidative damage to metal parts) but also prevents rust impurities from mixing into the water, ensuring the safety of drinking water.
Integrated Design, Easy Installation: The pressure tank, sensor, and circuit board feature an integrated design, eliminating the need for additional accessory assembly. Ordinary users can complete the installation by referring to the instruction manual, reducing professional installation costs and time.
Intelligent Protection, Safe to Use: It is equipped with multiple safety protection functions, including "waterless protection" (automatically shuts down when insufficient water source is detected to prevent motor burnout due to idling), "valve-closed shutdown" (automatically stops operating after the pipeline valve is closed to prevent pipeline damage caused by overpressure), and "anti-seizure protection" (reduces motor failures caused by component jamming), thus lowering usage risks.
Low-Noise Operation, Suitable for Household Use: The product clearly marks "low noise" on its specification. It does not generate obvious noise interference during operation, making it suitable for installation in indoor household areas such as balconies and kitchens or locations adjacent to living areas, without affecting daily rest and life.
Flexible Adjustment, Adaptable to Multiple Scenarios: It supports custom adjustment of pressure parameters, allowing users to set the starting pressure according to different water needs (e.g., low pressure for showering, high pressure for car washing). Meanwhile, the "small flow start" function is suitable for low-water-volume scenarios (such as turning on a single faucet), avoiding frequent start-stop cycles.
Power-Off Reset, No Reconfiguration Needed: It has a "power-off reset" function. When power is restored after a blackout, the pump can automatically revert to the pressure setting parameters before the power outage, eliminating the need for users to re-debug and ensuring more convenient use.
| Model | Power（kW） | Head（m） | Flow Rate（m³/h） | Corresponding Gear |
| CXWK2 - 2 | 0.25 | 16 | 2 | F1 |
| CXWK2 - 3 | 0.37 | 24 | 2 | F2 |
| CXWK2 - 4 | 0.55 | 30 | 2 | F4 |
| CXWK2 - 5 | 0.55 | 38 | 2 | F5 |
| CXWK4 - 2 | 0.37 | 13 | 4 | F1 |
| CXWK4 - 3 | 0.55 | 19.5 | 4 | F2 |
| CXWK4 - 4 | 0.75 | 28 | 4 | F4 |
| CXWK4 - 5 | 0.75 | 35 | 4 | F5 |
Note: The relevant data is for reference only. For updated product parameters,please contact our customer service.
