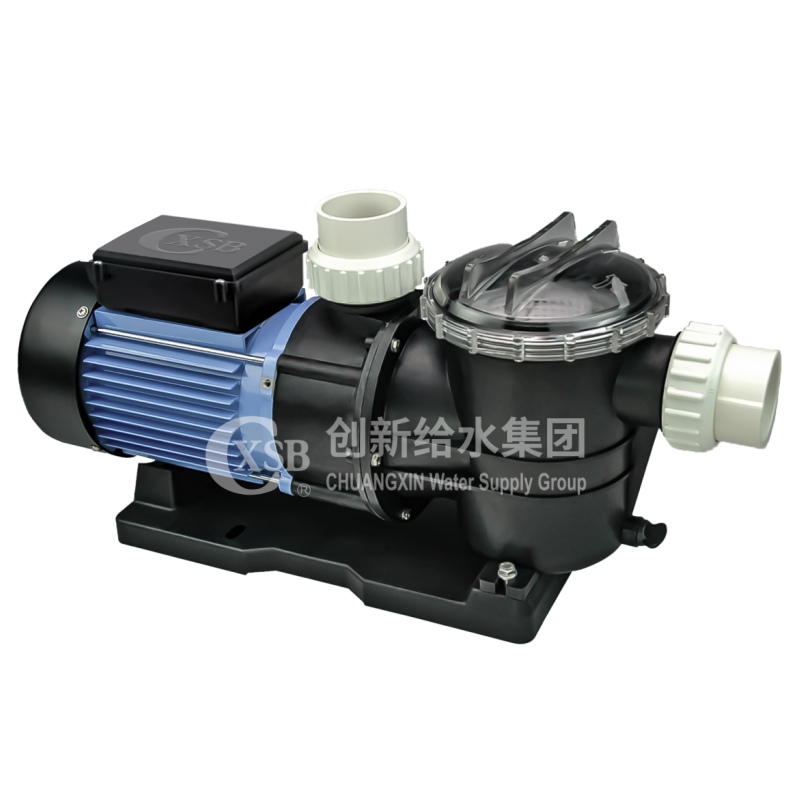

CXST Type Pool Pump
Model：CXST
Flow rate Q：140~300L/min
Lift H：5~13m
Single motor power of the moto：0.18~0.9kW
Protection class：IP55
Working pressure：≤0.3MPa
Conveyed medium：Fresh water, seawater and liquids with similar phy
Advantages：Circulation and filtration of small and medium - s
Operating temperature：5~50℃
+86 021 5643 0446
Detail
The CXST series pool pump is core-positioned as "safety-compliant, scenario-adaptable, efficient and stable", catering to both domestic and export demands. The single-phase models of this series come standard with a thermal protector, which can monitor the motor temperature in real-time. When abnormal conditions such as overload or locked rotor cause excessive temperature rise, it will automatically cut off the power supply to prevent the motor from burning out. Classified as a low-pressure circulation pump, it focuses on meeting the water circulation needs of "low resistance and large flow rate", and is not suitable for high-pressure water delivery scenarios.
Swimming Pool Circulation and Filtration:Suitable for small domestic swimming pools (area ≤50㎡), outdoor leisure pools in villas, and small hotel swimming pools (e.g., children's pools). It drives pool water into devices such as sand filter tanks and diatomaceous earth filters to filter out hair, dust, and microorganisms (e.g., bacteria, algae spores) from the water. Cooperating with UV disinfection or chlorine disinfection systems, it achieves water purification, protects swimmers' skin health, and reduces the risk of eye infections. The series covers 6 models, which can be flexibly selected according to the pool volume (e.g., 10~30㎡), ensuring the water is circulated 1~2 times per hour (meeting the requirements of pool water quality standards).
Wide Flow and Lift Coverage, Flexible Model Selection:
The series offers a flow rate range of 140~300 L/min and a lift range of 5~13 m, with multiple models that can accurately match the needs of different scenarios. For instance, the CXST25 (140 L/min, 5 m lift) is suitable for small breeding ponds/pools of 10~15 ㎡, while the CXSTP (300 L/min, 13 m lift) is suitable for medium-sized breeding ponds/pools of 25~30 ㎡. This avoids issues such as "incomplete circulation in a large pool driven by a small pump" (which leads to water quality deterioration) or "energy waste in a small pool driven by a large pump" (with power consumption 20%~30% higher than that of a properly matched model).
Structural Design Meeting Maintenance Needs:
Built-in Filter Basket: It can pre-filter large-particle impurities in the water (such as residual bait in breeding ponds and hair in swimming pools), reducing the clogging frequency of the subsequent filtration system and lowering the cost of filter element replacement.
Transparent Cover + Transparent Cover Gasket: There is no need to disassemble the pump body; the clogging status of the filter basket can be directly observed through the transparent cover to determine whether cleaning is required, saving maintenance time (conventional pumps without a transparent cover require disassembly of 3~4 components to inspect the filter basket).
Matching Wrench: A dedicated wrench is provided to facilitate the disassembly of components such as joint nuts and transparent covers, eliminating the need for additional tool preparation and improving maintenance convenience.
| Model | Flow Rate（L/min） | Head（m） | Power(kW) | Diameter（mm） |
| CXST25 | 140 | 5 | 0.18 | 48.5 or 50 |
| CXST35 | 160 | 8 | 0.25 | 48.5 or 50 |
| CXST50 | 210 | 11 | 0.37 | 48.5 or 50 |
| CXST75 | 240 | 10.5 | 0.55 | 48.5 or 50 |
| CXST100 | 275 | 11 | 0.75 | 48.5 or 50 |
| CXST120 | 300 | 13 | 0.9 | 48.5 or 50 |
