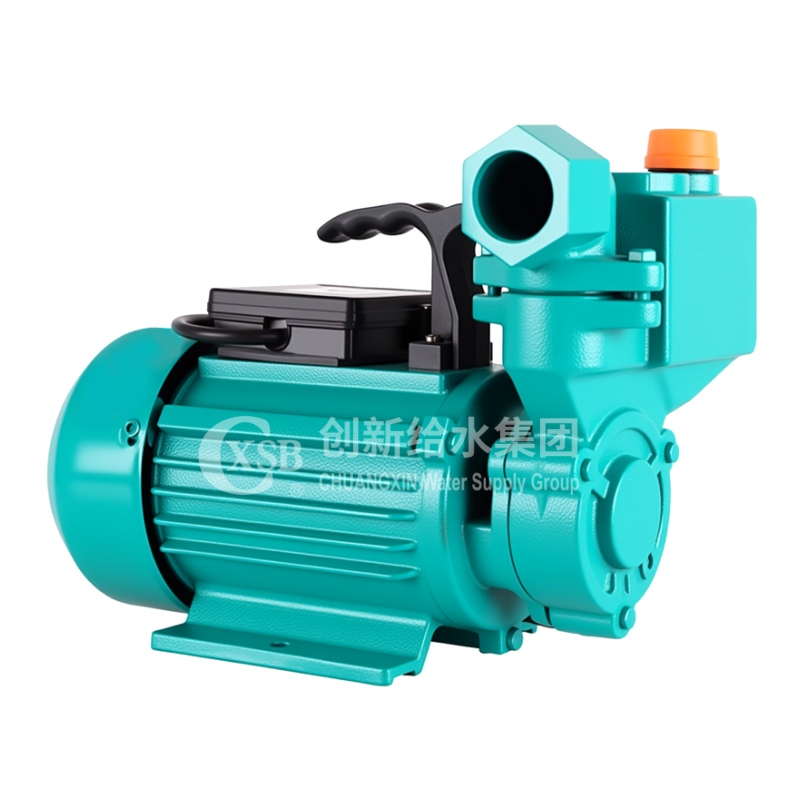

CXJY Type Household Automatic Booster Pump
Model：CXJY
Flow rate Q：190~400L/min
Lift H：8m
Single motor power of the moto：0.75~1.8kW
Conveyed medium：Tap water and other non - corrosive liquids in ter
Operating temperature：<60℃
+86 021 5643 0446
Detail
The CXJY Type Household Fully Automatic Booster Pump is an all-weather, fully automatic household tap water booster pump that requires no shutdown. Once turned on, the pump operates automatically until the pipeline pressure reaches the set level, after which it stops automatically—eliminating the need for frequent startup and shutdown. Its design features include low noise, easy installation, and strong self-priming capability.
Automatic Control: Equipped with an automatic control system. The electric pump starts when the valve is opened and shuts down automatically when the valve is closed, eliminating the need for manual power-off. It is easy to use and energy-efficient.
Strong Self-priming Capability: Fill the pump cavity with water for the first use; no re-filling is required for subsequent use. It has strong self-priming capability and can quickly lift water to the required height.
Low Noise: It produces low noise during operation and will not interfere with the user's daily life.
Long Service Life: The motor is equipped with an overload protection system, which can prevent the motor from being damaged due to excessive heat generation and extend the service life of the pump. In addition, some models have a large-capacity pressure tank, which can reduce the switching frequency and further improve the product's service life.
Easy Installation: The installation process is simple and can be completed by ordinary households on their own.
| Model | Power（kW） | Head（m） | Flow Rate（L/min） |
| CXJY 180 | 0.75 | 8 | 190 |
| CXJY 240 | 1 | 8 | 245 |
| CXJY 280 | 1.25 | 8 | 300 |
| CXJY 320 | 1.5 | 8 | 340 |
| CXJY 400 | 2 | 8 | 400 |
Note: The relevant data is for reference only. For updated product parameters,please contact our customer service.
